authentik


https://docs.goauthentik.io/docs/installation/docker-compose

https://www.youtube.com/watch?v=N5unsATNpJk

docker-compose.yml

wichtig:
- bei server einen hostnamen hinzufügen
- wenn möglich port 9000 belassen
- gleiches network wie der Nginx Proxy Manager Container nutzen (damit npm über den hostname auf den authentik server zugreifen kann, siehe 500 Internal Server Error weiter unten)

---

services:
  postgresql:
    image: docker.io/library/postgres:16-alpine
    restart: unless-stopped
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -d $${POSTGRES_DB} -U $${POSTGRES_USER}"]
      start_period: 20s
      interval: 30s
      retries: 5
      timeout: 5s
    networks:
      - reverseproxy_network
    volumes:
      - database:/var/lib/postgresql/data
    environment:
      POSTGRES_PASSWORD: ${PG_PASS}
      POSTGRES_USER: ${PG_USER:-authentik}
      POSTGRES_DB: ${PG_DB:-authentik}
    env_file:
      - stack.env
  redis:
    image: docker.io/library/redis:alpine
    command: --save 60 1 --loglevel warning
    restart: unless-stopped
    healthcheck:
      test: ["CMD-SHELL", "redis-cli ping | grep PONG"]
      start_period: 20s
      interval: 30s
      retries: 5
      timeout: 3s
    networks:
      - reverseproxy_network
    volumes:
      - redis:/data
  server:
    image: ${AUTHENTIK_IMAGE:-ghcr.io/goauthentik/server}:${AUTHENTIK_TAG:-2024.6.0}
    restart: unless-stopped
    hostname: authentik_server
    command: server
    ulimits:
      nofile:
        soft: 10240
        hard: 10240
    environment:
      AUTHENTIK_REDIS__HOST: redis
      AUTHENTIK_POSTGRESQL__HOST: postgresql
      AUTHENTIK_POSTGRESQL__USER: ${PG_USER:-authentik}
      AUTHENTIK_POSTGRESQL__NAME: ${PG_DB:-authentik}
      AUTHENTIK_POSTGRESQL__PASSWORD: ${PG_PASS}
    networks:
      - reverseproxy_network
    volumes:
      - media:/media
      - custom-templates:/templates#
    env_file:
      - stack.env
    ports:
      - "${COMPOSE_PORT_HTTP:-9000}:9000"
      - "${COMPOSE_PORT_HTTPS:-9443}:9443"
    depends_on:
      - postgresql
      - redis
  worker:
    image: ${AUTHENTIK_IMAGE:-ghcr.io/goauthentik/server}:${AUTHENTIK_TAG:-2024.6.0}
    restart: unless-stopped
    command: worker
    ulimits:
      nofile:
        soft: 10240
        hard: 10240
    environment:
      AUTHENTIK_REDIS__HOST: redis
      AUTHENTIK_POSTGRESQL__HOST: postgresql
      AUTHENTIK_POSTGRESQL__USER: ${PG_USER:-authentik}
      AUTHENTIK_POSTGRESQL__NAME: ${PG_DB:-authentik}
      AUTHENTIK_POSTGRESQL__PASSWORD: ${PG_PASS}
    # `user: root` and the docker socket volume are optional.
    # See more for the docker socket integration here:
    # https://goauthentik.io/docs/outposts/integrations/docker
    # Removing `user: root` also prevents the worker from fixing the permissions
    # on the mounted folders, so when removing this make sure the folders have the correct UID/GID
    # (1000:1000 by default)
    user: root
    networks:
      - reverseproxy_network
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - media:/media
      - certs:/certs
      - custom-templates:/templates
    env_file:
      - stack.env
    depends_on:
      - postgresql
      - redis

volumes:
  database:
    driver: local
  redis:
    driver: local
  media:
  custom-templates:
  certs:

networks:
  reverseproxy_network:
      name: reverseproxy_network
      driver: bridge

PG_PASS

openssl rand 36 | base64

AUTHENTIK_SECRET_KEY

openssl rand 60 | base64

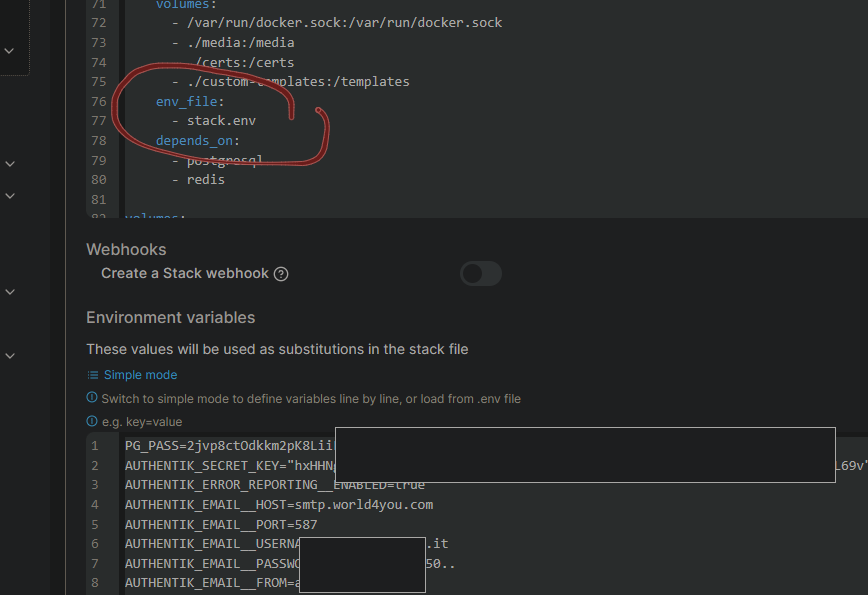

Portainer env via advanced mode

PG_PASS=2jvp8Jmnf8cS
AUTHENTIK_SECRET_KEY="hxHHNgxf5PALhfX0FL69v"
AUTHENTIK_ERROR_REPORTING__ENABLED=true
AUTHENTIK_EMAIL__HOST=smtp.world4you.com
AUTHENTIK_EMAIL__PORT=587
AUTHENTIK_EMAIL__USERNAME=MEINE....@MY-MAIL.DE
AUTHENTIK_EMAIL__PASSWORD=MEIN.....MAIL-PW
AUTHENTIK_EMAIL__FROM=NO-REPLY@MY-MAIL.DE
AUTHENTIK_EMAIL__USE_TLS=true
COMPOSE_PORT_HTTP=9006
COMPOSE_PORT_HTTPS=9446


Danach noch das Initial-Setup durchführen, um ein Passwort zu setzen:

http://MEIN-HOSTNAME-ODER-IP:9000/if/flow/initial-setup

oder mit meiner cfg

http://MEIN-HOSTNAME-ODER-IP:9006/if/flow/initial-setup

Zusatzinfo
die Zeilen
    ulimits:
      nofile:
        soft: 10240
        hard: 10240
in der docker-compose.yml habe ich eingefügt, weil ein Bug dazu führt, dass die CPU-Leistung des Docker Hosts auf 100% klettert und einige Stunden braucht, bis sie sich wieder erholt. Mehr Infos unter https://github.com/goauthentik/authentik/pull/7762 und
https://github.com/goauthentik/authentik/issues/7025, die Lösung stammt aus diesem Kommentar:
https://github.com/goauthentik/authentik/issues/7025#issuecomment-1868333903

Nextcloud Integration

benötigte Nextcloud App: https://apps.nextcloud.com/apps/user_oidc

Anleitung: https://docs.goauthentik.io/integrations/services/nextcloud/

Zusatz:

Befehl, um nur Anmeldung über Authentik zuzulassen:

sudo -u www-data php var/www/nextcloud/occ config:app:set --value=0 user_oidc allow_multiple_user_backends

bzw wenn man diesem Artikel folgt

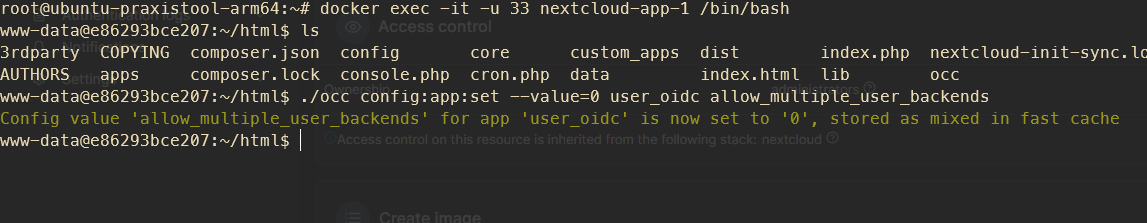

docker exec -it -u 33 nextcloud-app-1 /bin/bash

und dann

./occ config:app:set --value=0 user_oidc allow_multiple_user_backends


Wenn man sich dann trotzdem über den Direktlogin zb als Super-Admin einloggen möchte, geht das über

http://nextcloud.MEINEDOMAIN.de/login?direct=1

Branding (eigene Marke)

# default bg und icon:
/static/dist/assets/icons/icon_left_brand.svg
/static/dist/assets/icons/icon.png

https://www.youtube.com/watch?v=YawgyM509ng

https://www.youtube.com/watch?v=3oIRY0NWPr8

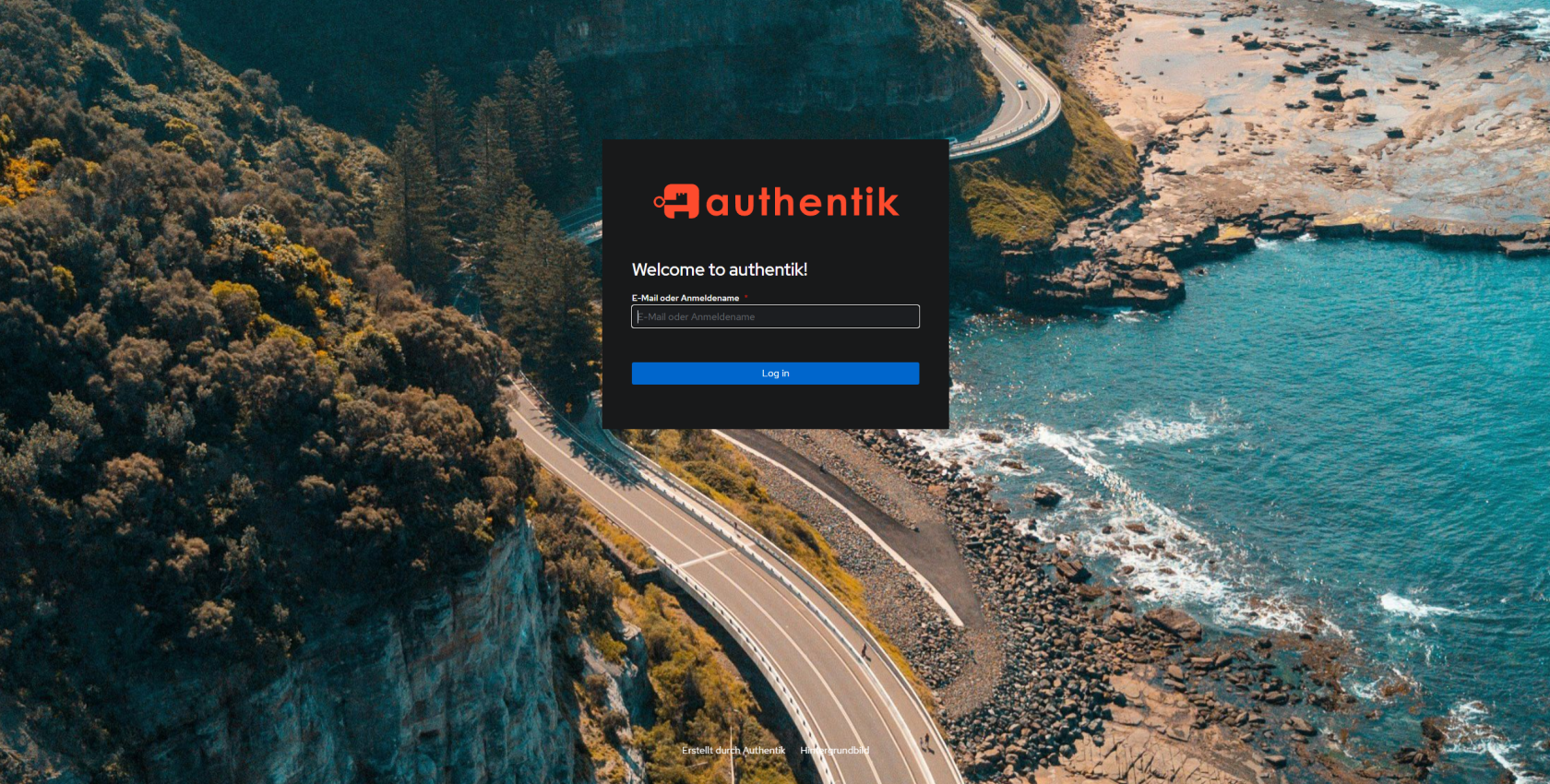

Eigene Backgrounds und Icons

1) media-volume muss in der docker-compose.yml bei server, worker und als volume vorhanden sein:

...
  server:
    image: ${AUTHENTIK_IMAGE:-ghcr.io/goauthentik/server}:${AUTHENTIK_TAG:-2024.6.1}
...
    volumes:
      - media:/media # <------------ HIER
      - custom-templates:/templates#
    env_file:
  worker:
    image: ${AUTHENTIK_IMAGE:-ghcr.io/goauthentik/server}:${AUTHENTIK_TAG:-2024.6.0}
...
    user: root
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - media:/media # <------------ HIER
      - certs:/certs
      - custom-templates:/templates
    env_file:
...
volumes:
  database:
    driver: local
  redis:
    driver: local
  media: # <------------ HIER
  certs:
  custom-templates:

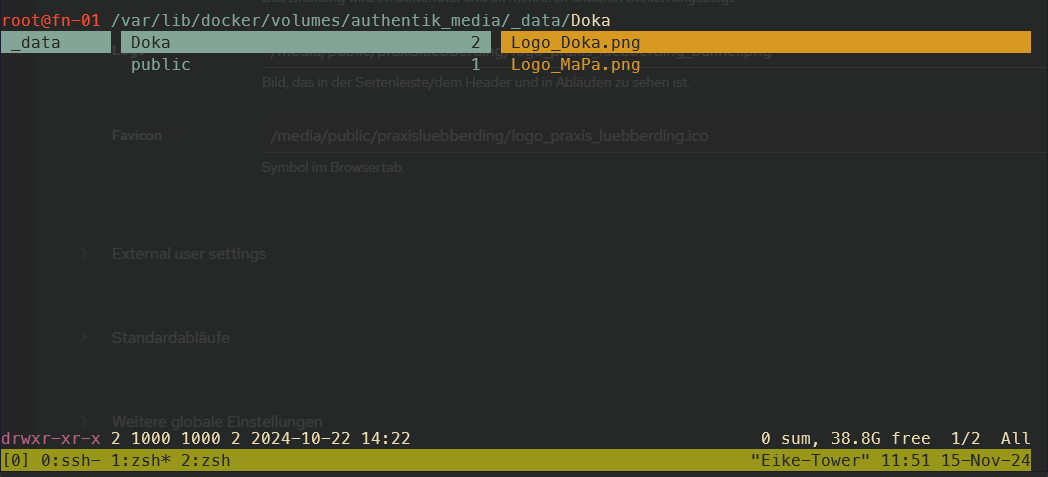

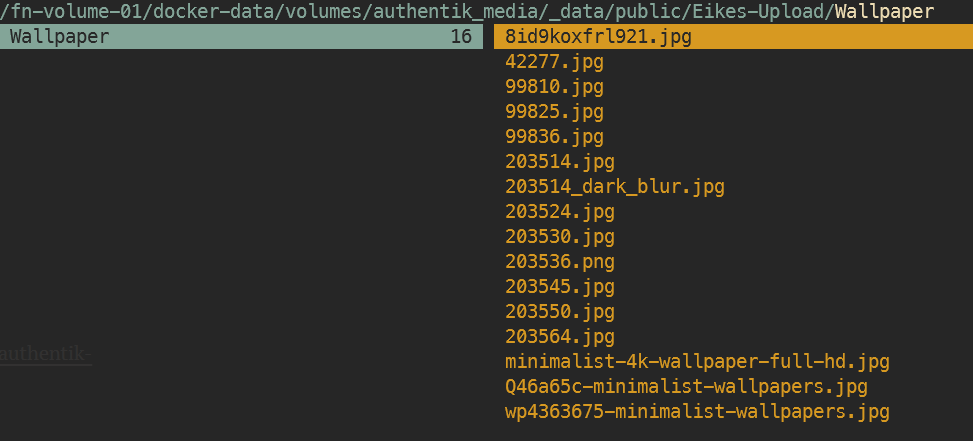

2) Bilddateien übertragen (mit WinSCP, CLI SCP oder MountainDuck, mir egal)

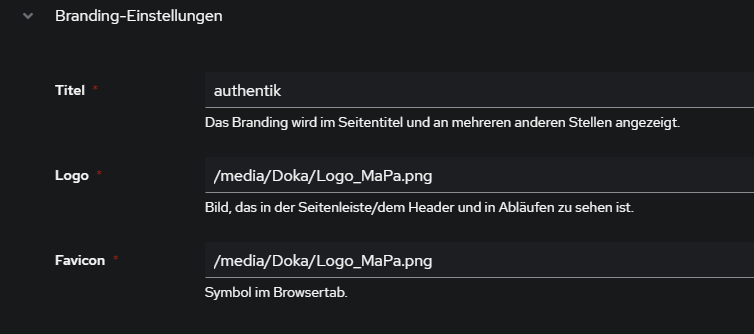

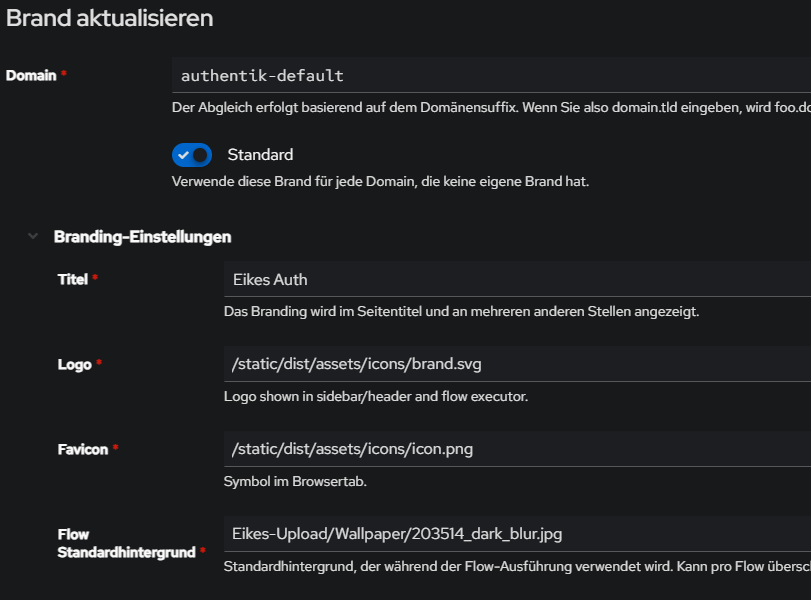

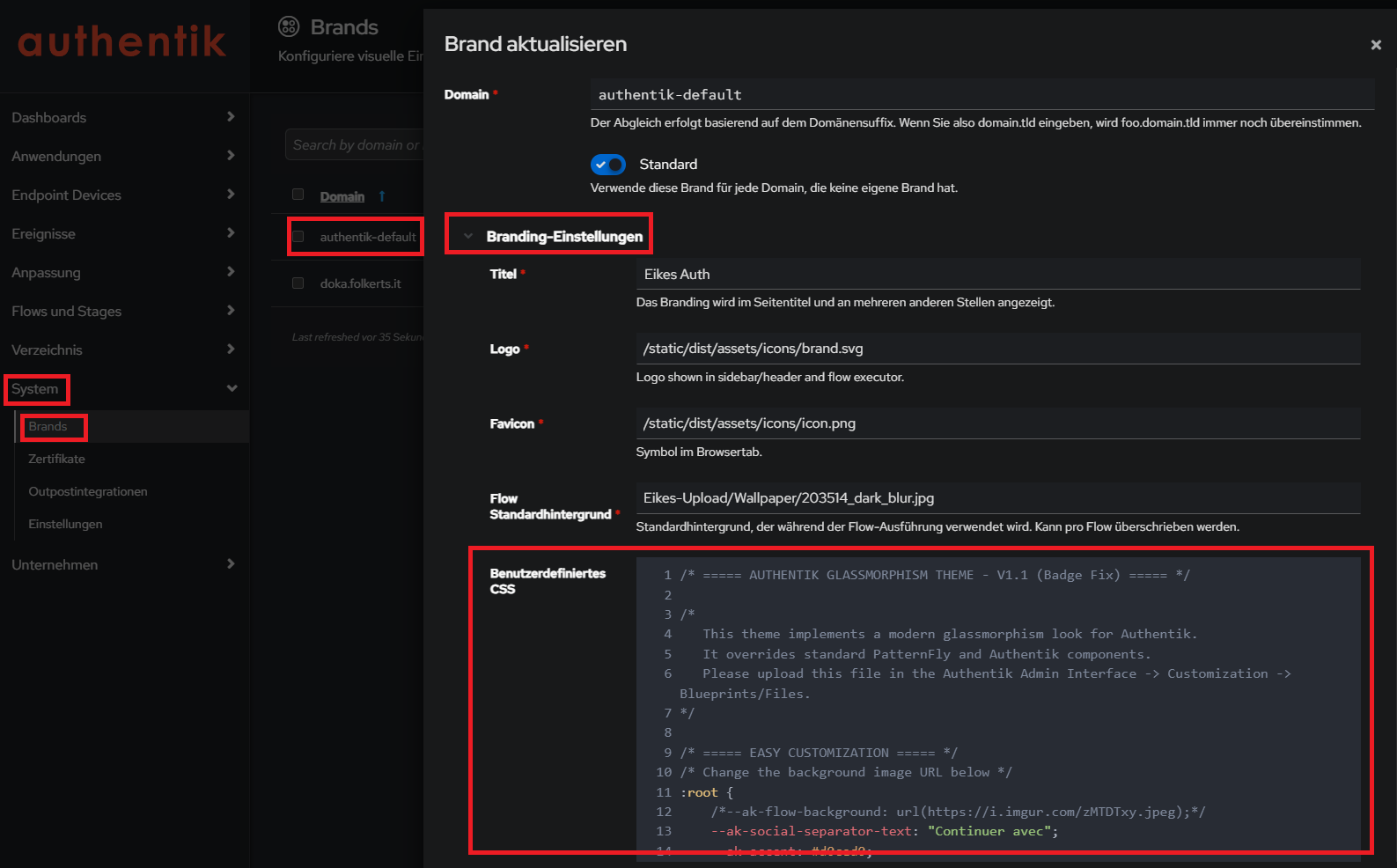

3) Authentik > System > Brands > edit default (Stiftsymbol) > Branding-Settings > Pfade eingeben:


custom.css (zb Farben ändern oder Hintergrund auf allen Flows)

Quelle: https://github.com/goauthentik/authentik/discussions/4831

docker-compose.yml:

# docker-compose.yml bei server: und worker:
...
    volumes:
      - media:/media
      - custom-templates:/templates#
      - /mnt/praxis-volume-01/docker-data/volumes/authentik_media/_data/public/praxis/custom.css:/web/dist/custom.css
      # oder
      - ./my-css-file.css:/web/dist/custom.css
    env_file:
...

custom.css:

/*** global ***/
:root {
  --ak-accent: #344c4a;
  --pf-global--Color--100: #5f7271;
  --pf-global--Color--200: #5f7271;
  --pf-global--primary-color--100: #8DAAA8;
  --pf-global--primary-color--200: #5f7271;
  --pf-global--primary-color--400: var(--ak-accent);
}

.pf-c-background-image {
  /*--ak-flow-background: url(https://picsum.photos/1920/1080) !important;*/
  --ak-flow-background: url("/media/public/praxis/dreamy_dark.png") !important;
}

.pf-c-login__main,
.pf-c-login__footer .pf-c-list,
.pf-c-page__sidebar {
  background-color: transparent !important;
  /* background-color: #2e2e2e6b !important; */
  backdrop-filter: blur(25px);
}

.pf-c-login__main::before,
.pf-c-login__footer .pf-c-list::before,
.pf-c-page__sidebar::before {
  content: "";
  position: absolute;
  left: 0;
  top: 0;
  width: 100%;
  height: 100%;
  z-index: -1;
  background-color: rgba(245, 0, 0, 1.0);
  opacity: 0.1;
}


/*** flows ***/
.pf-c-background-image {
  --pf-c-background-image--Filter: none;
}

.ak-login-container {
  /* fix #4830 */
  justify-content: initial;
}

.pf-c-login__header {
  margin-top: 10px;
}

/* give both the blur and color same radius */
.pf-c-login__main,
.pf-c-login__main::before {
  border-radius: 3px 3px 0 0;
}

.pf-c-login__footer .pf-c-list,
.pf-c-login__footer .pf-c-list::before {
  border-radius: 0 0 3px 3px;
}

.pf-c-login__main::before,
.pf-c-login__footer .pf-c-list::before {
  background-color: var(--pf-c-login__main--BackgroundColor);
}

.pf-c-login__footer {
  /* unset inverted colorscheme on footer since we're adding bg */
  --pf-global--Color--100: inherit;
  --pf-global--Color--200: inherit;
  --pf-global--BorderColor--100: inherit;
  --pf-global--primary-color--100: inherit;
  --pf-global--link--Color: inherit;
  --pf-global--link--Color--hover: inherit;
  --pf-global--BackgroundColor--100: inherit;
  display: none;
  /* For removing footer with Powered by Authentik link */
}

.pf-c-login__footer .pf-c-list {
  padding-top: var(--pf-c-login__footer--c-list--PaddingTop);
  padding-bottom: var(--pf-c-login__footer--c-list--PaddingTop);
}

@media (prefers-color-scheme: dark) {

  .pf-c-login__main::before,
  .pf-c-login__footer .pf-c-list::before {
    background-color: var(--ak-dark-background);
  }
}


/*** user interface ***/
.header input {
  border-bottom-color: var(--pf-global--primary-color--100);
}


/*** admin interface ***/
.pf-c-page__sidebar {
  backdrop-filter: blur(10px);
}

.pf-c-page__sidebar::before {
  background-color: var(--pf-global--BackgroundColor--dark-300);
}

@media (prefers-color-scheme: dark) {
  .pf-c-page__sidebar::before {
    background-color: var(--ak-dark-background-light);
  }

  .pf-c-nav {
    background-color: transparent;
  }
}

.pf-c-nav__link.pf-m-current::after,
.pf-c-nav__link.pf-m-current:hover::after,
.pf-c-nav__item.pf-m-current:not(.pf-m-expanded) .pf-c-nav__link::after {
  --pf-c-nav__link--m-current--after--BorderColor: var(--ak-accent) !important;
}

Proxy Provider

nach Anleitung von https://geekscircuit.com/set-up-authentik-sso-with-nginx-proxy-manager/

Wenn man eine Seite mit Authentik sichern möchte, die kein Userlogin hat (zb gethomepage/homepage dashboard)

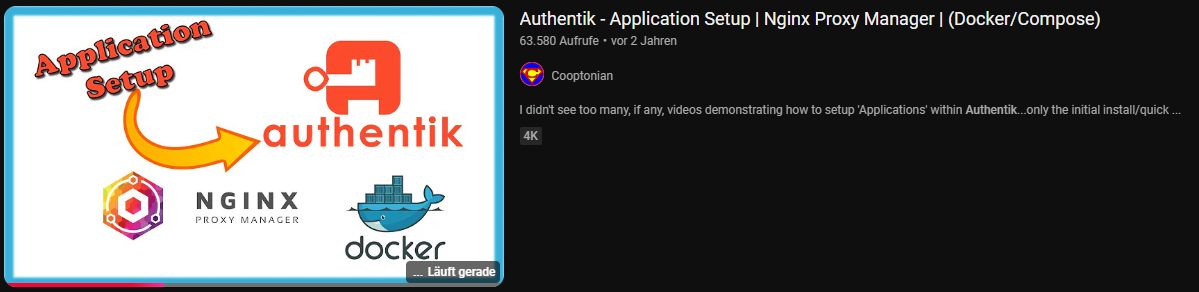

https://www.youtube.com/watch?v=Nh1qiqCYDt4

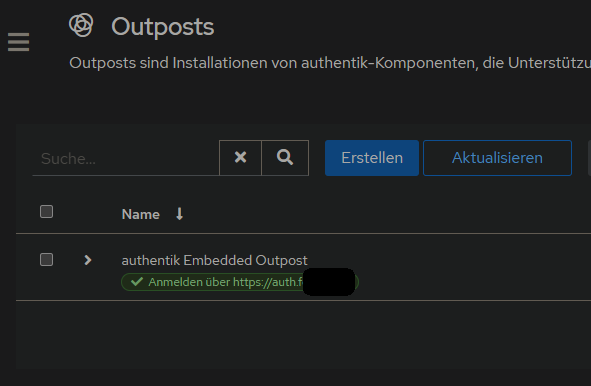

1. Authentik Domain in authentik Embedded Outpost ändern

um die eigene Domain festzulegen. Ist zb wichtig im Falle von Emails und Links, die versendet werden.

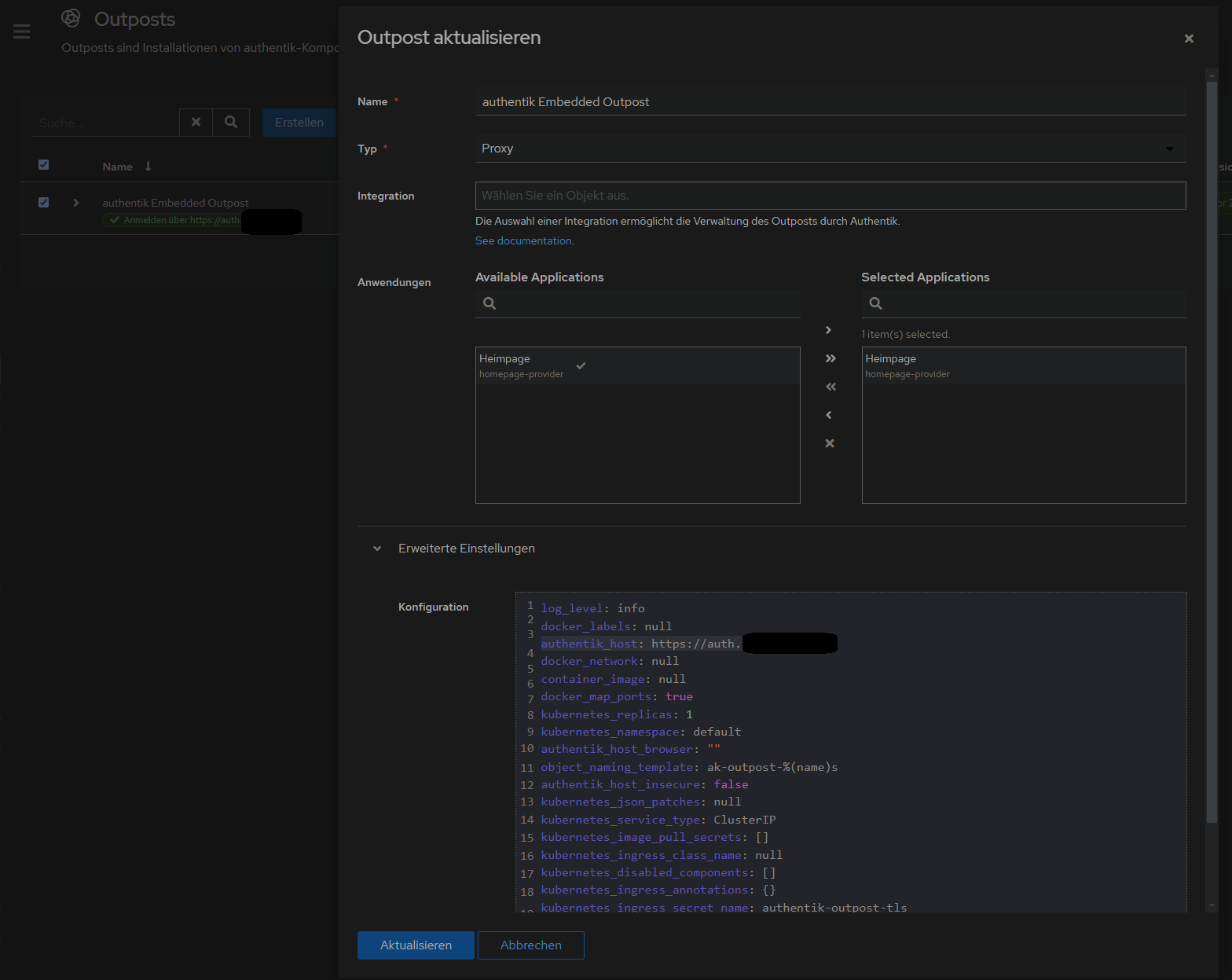

Anwendungen > Outpost > authentik Embedded Outpost > bearbeiten > Erweiterte Einstellungen > Konfiguration > authentik_host auf eigene Domain umstellen:

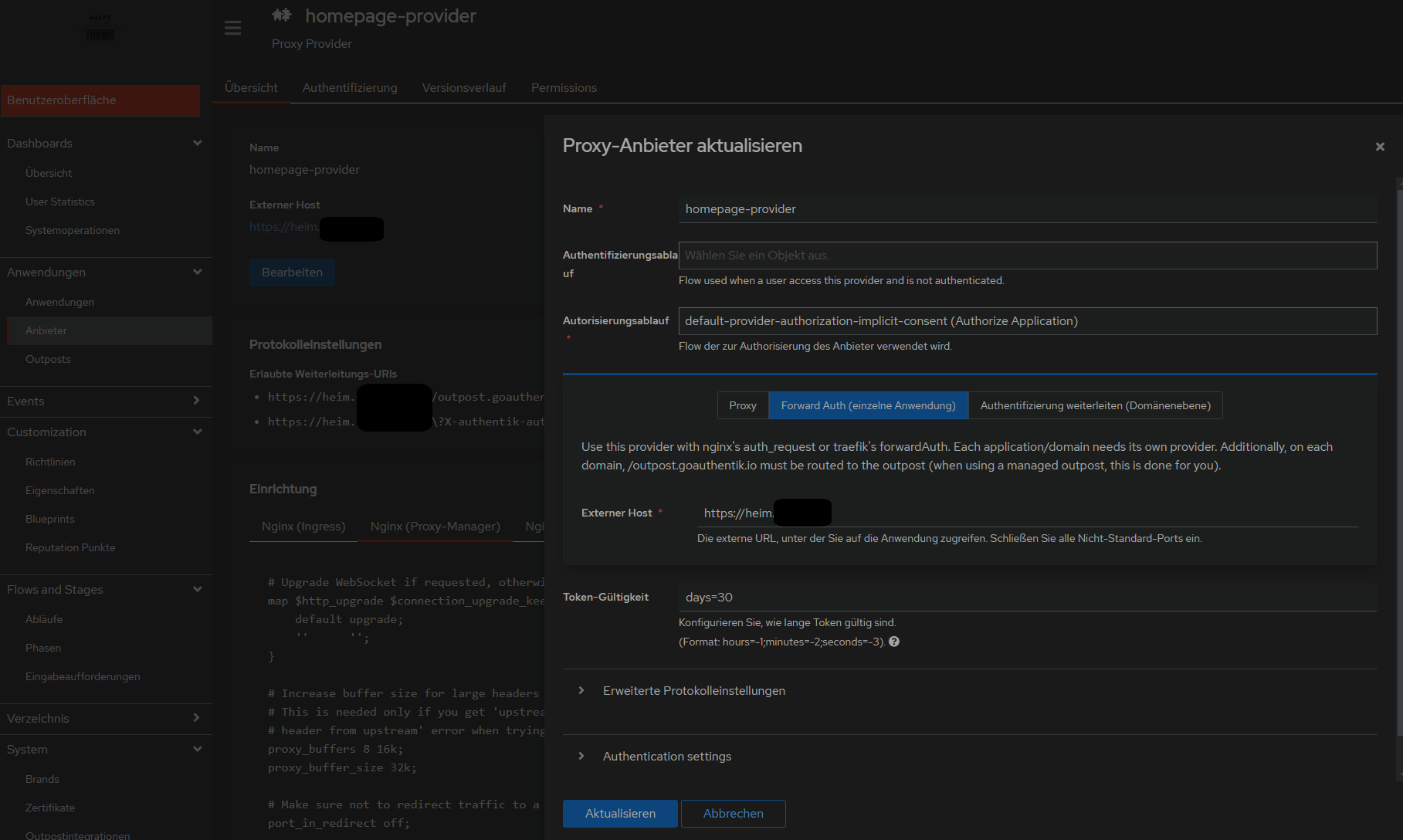

2. Proxy Provider erstellen

Applications > Provider > new Proxy Provider > Forward Auth (single application) > externer host eingeben


3. Anwendung mit dem erstellten Provider erstellen

...

danach weiter wie beim 500 Internal Server Error vorgehen, also NPM mit custom configuration und alle Container in gleiches Docker-Network legen:

500 Internal Server Error

Lösung auf github gepostet: https://github.com/vineethmn/geekscomments/issues/1#issuecomment-2436487499

I want to share my solution with getting rid the 500 internal server error because i did not find it anywhere online (i found out randomly):

#### TLDR:
- add NPM and Authentik to the same docker network
- use the Authentik server dockercontainer INTERNAL Port in NPM > advanced > custom config and not the one you exposed (when you chose to use for example 9006:9000 in your docker-compose.yml then redirect to 9000 anyway. I dont know why 9006 is not working)

#### LDR:

First I added the NPM and Authentik containers in the same docker network and added a hostname in my

authentik docker-compose.yml
...
  server:
    image: ${AUTHENTIK_IMAGE:-ghcr.io/goauthentik/server}:${AUTHENTIK_TAG:-2024.6.0}
    hostname: authentik_server
    ports:
      - 9006:9000
      - 9446:9443
    networks:
      - reverseproxy_network
    volumes:
...
  postgresql:
    image: docker.io/library/postgres:16-alpine
    networks:
      - reverseproxy_network
    volumes:
...

networks:
  reverseproxy_network:
      name: reverseproxy_network
      driver: bridge

and


npm docker-compose.yml
services:
  app:
    image: 'jc21/nginx-proxy-manager:latest'
    restart: always
    ports:
      - '80:80'
      - '81:81'
      - '443:443'
    volumes:
      - data:/data
      - letsencrypt:/etc/letsencrypt
    networks:
      - reverseproxy_network

volumes:
  data:
  letsencrypt:

networks:
  reverseproxy_network:
      name: reverseproxy_network
      driver: bridge

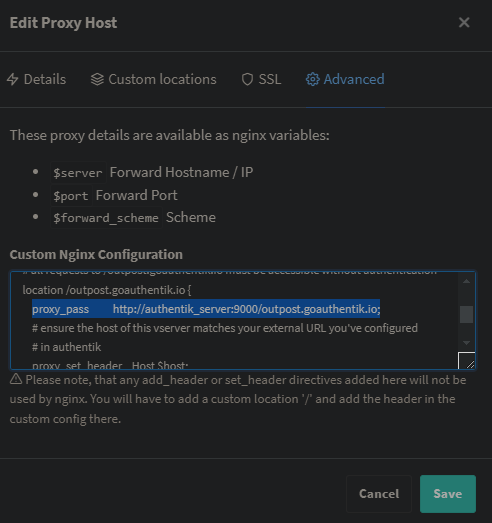

after that i used the NPM > Proxy Host > Advanced > Custom Nginx Configuration config by
https://geekscircuit.com/set-up-authentik-sso-with-nginx-proxy-manager
for my homepage proxy host:
(you only need to change proxy_pass if your authentik-server hostname does not match with mine 'hostname: authentik_server')


custom nginx configuration
# Increase buffer size for large headers
# This is needed only if you get 'upstream sent too big header while reading response
# header from upstream' error when trying to access an application protected by goauthentik
proxy_buffers 8 16k;
proxy_buffer_size 32k;

location / {
    # Put your proxy_pass to your application here
    proxy_pass          $forward_scheme://$server:$port;

    # authentik-specific config
    auth_request        /outpost.goauthentik.io/auth/nginx;
    error_page          401 = @goauthentik_proxy_signin;
    auth_request_set $auth_cookie $upstream_http_set_cookie;
    add_header Set-Cookie $auth_cookie;

    # translate headers from the outposts back to the actual upstream
    auth_request_set $authentik_username $upstream_http_x_authentik_username;
    auth_request_set $authentik_groups $upstream_http_x_authentik_groups;
    auth_request_set $authentik_email $upstream_http_x_authentik_email;
    auth_request_set $authentik_name $upstream_http_x_authentik_name;
    auth_request_set $authentik_uid $upstream_http_x_authentik_uid;

    proxy_set_header X-authentik-username $authentik_username;
    proxy_set_header X-authentik-groups $authentik_groups;
    proxy_set_header X-authentik-email $authentik_email;
    proxy_set_header X-authentik-name $authentik_name;
    proxy_set_header X-authentik-uid $authentik_uid;
}

# all requests to /outpost.goauthentik.io must be accessible without authentication
location /outpost.goauthentik.io {
    proxy_pass          http://authentik_server:9000/outpost.goauthentik.io; # <<<< CHANGE HERE <<<<
    # ensure the host of this vserver matches your external URL you've configured
    # in authentik
    proxy_set_header    Host $host;
    proxy_set_header    X-Original-URL $scheme://$http_host$request_uri;
    add_header          Set-Cookie $auth_cookie;
    auth_request_set    $auth_cookie $upstream_http_set_cookie;

    # required for POST requests to work
    proxy_pass_request_body off;
    proxy_set_header Content-Length "";
}

# Special location for when the /auth endpoint returns a 401,
# redirect to the /start URL which initiates SSO
location @goauthentik_proxy_signin {
    internal;
    add_header Set-Cookie $auth_cookie;
    return 302 /outpost.goauthentik.io/start?rd=$request_uri;
    # For domain level, use the below error_page to redirect to your authentik server with the full redirect path
    # return 302 https://authentik.company/outpost.goauthentik.io/start?rd=$scheme://$http_host$request_uri;
}


i also did not have to change anything on my authentik outpost:


Andere mit dem gleichen Problem:

https://geekscircuit.com/set-up-authentik-sso-with-nginx-proxy-manager/
https://github.com/goauthentik/authentik/issues/10010
https://www.reddit.com/r/selfhosted/comments/vs12ug/sso_with_authentik_and_nginx_proxy_manager/?tl=de
https://www.youtube.com/watch?v=Nh1qiqCYDt4&list=PLH73rprBo7vSkDq-hAuXOoXx2es-1ExOP

Einladungen per Mail

User-Enrollment kann mit mit Flows aus dem Anhang dieses Artikels realisiert werden.

Quelle: https://www.youtube.com/watch?v=mGOTpRfulfQ

https://docs.goauthentik.io/docs/add-secure-apps/flows-stages/flow/examples/flows (Enrollment-2-Stage.yaml in Abläufe importieren)

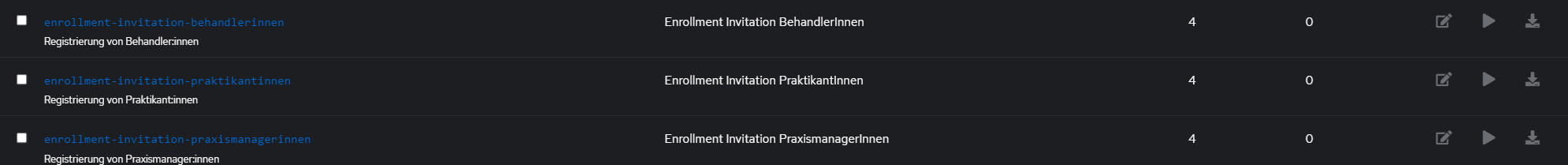

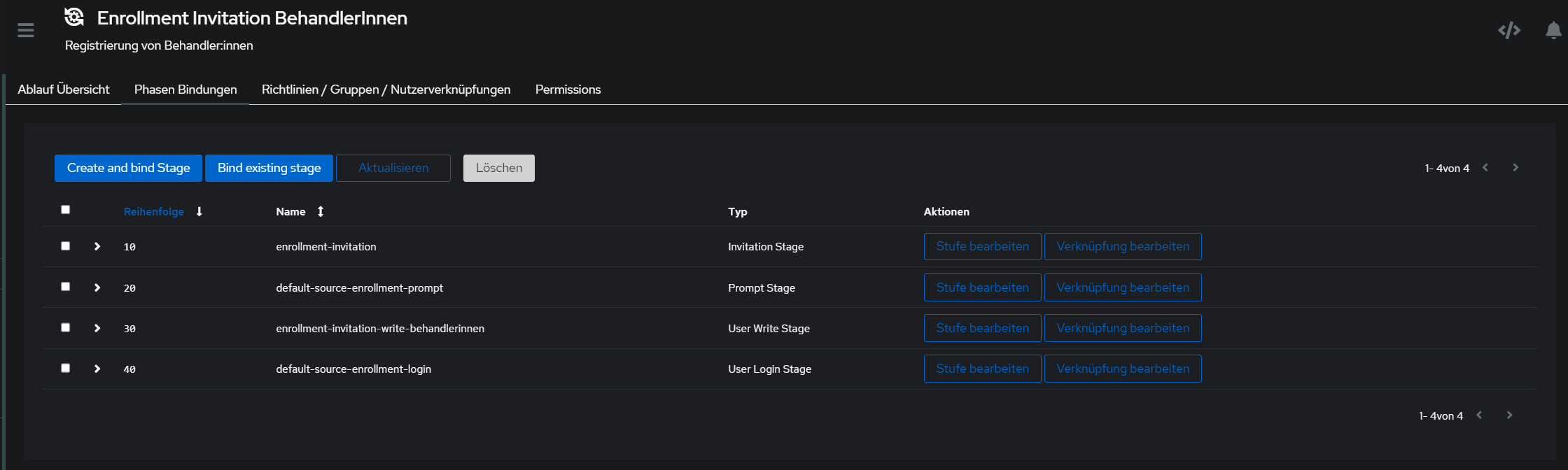

Flows

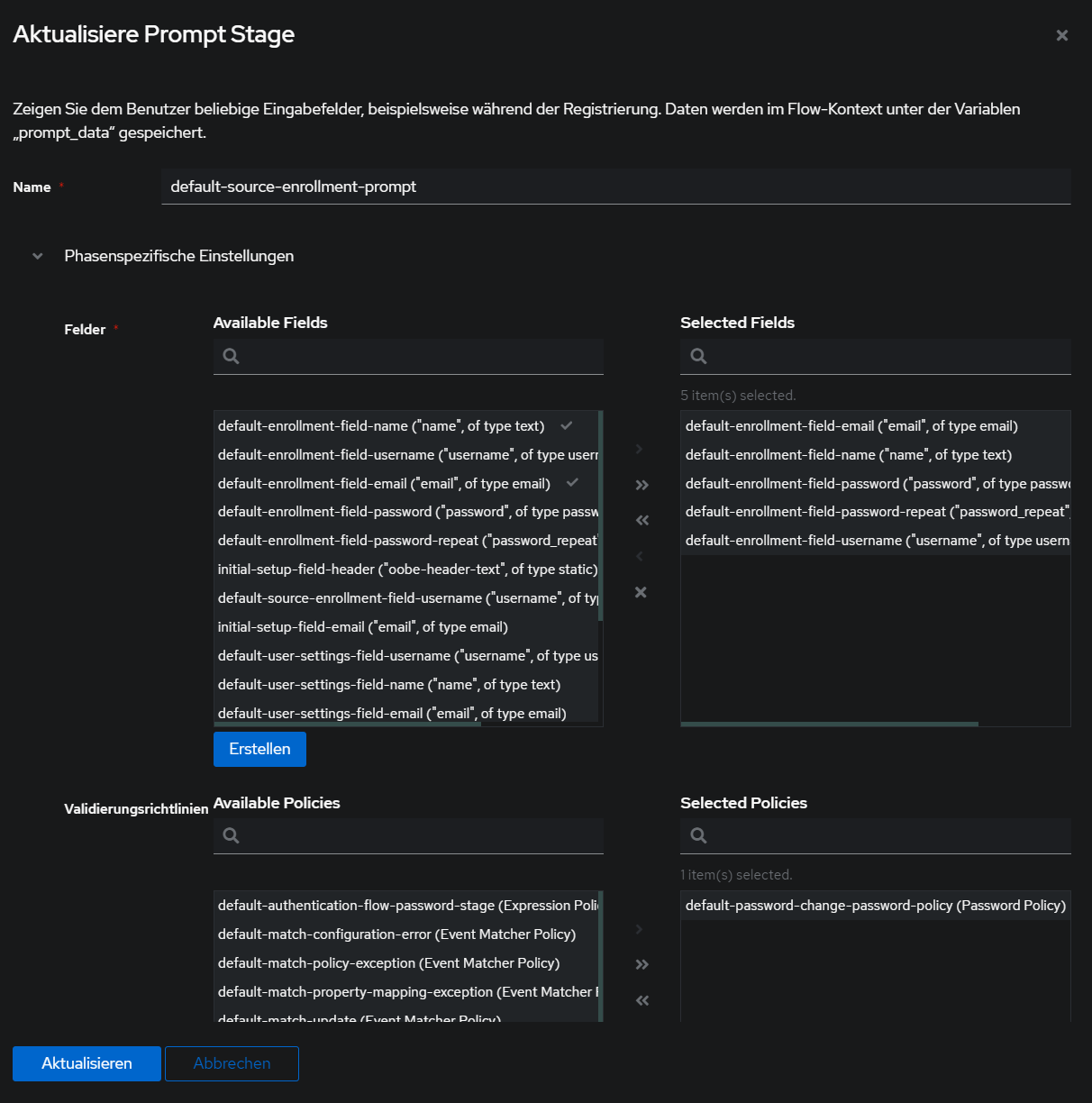

^ auf Reiehnfolge der Fields achten, damit username, Name, Email, Pw, pw nochmal richtig sortiert sind

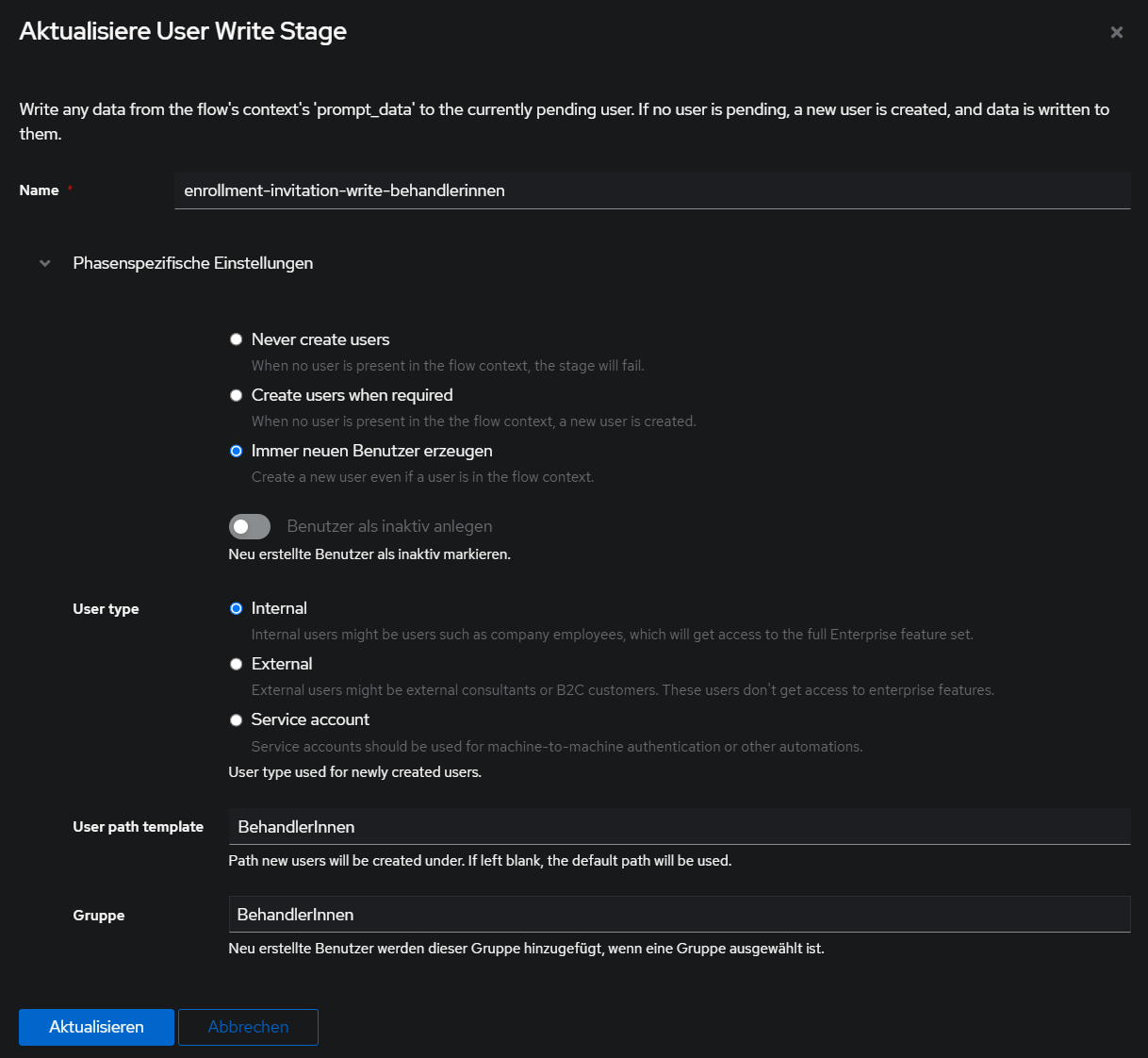

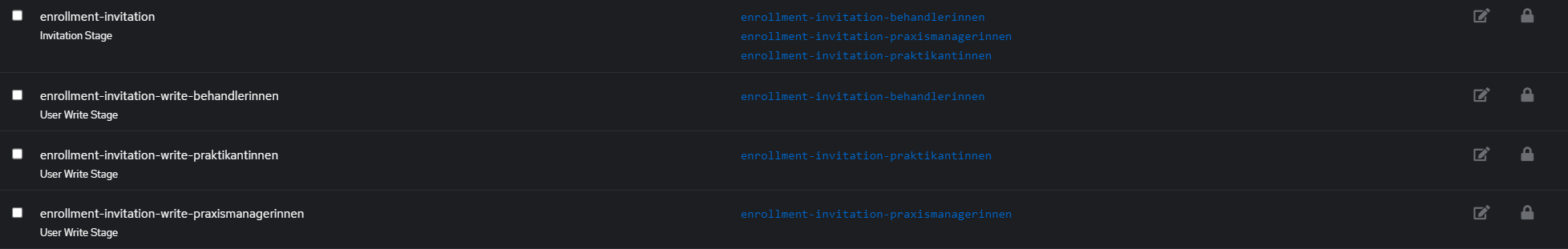

Phasen

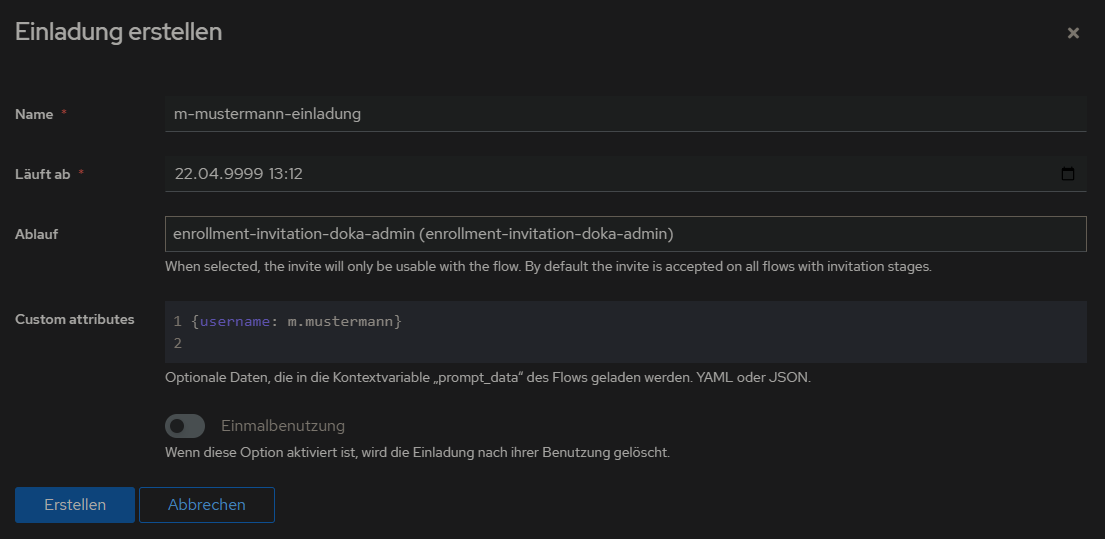

Danach auf Verzeichnis > Einladungen > Erstellen klicken und mit dem Flow einen Einladungslink erzeugen:

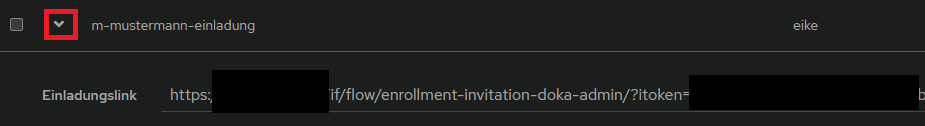

den Eintrag ausklappen, um den Link zu kopieren:


No Comments
Back to top
